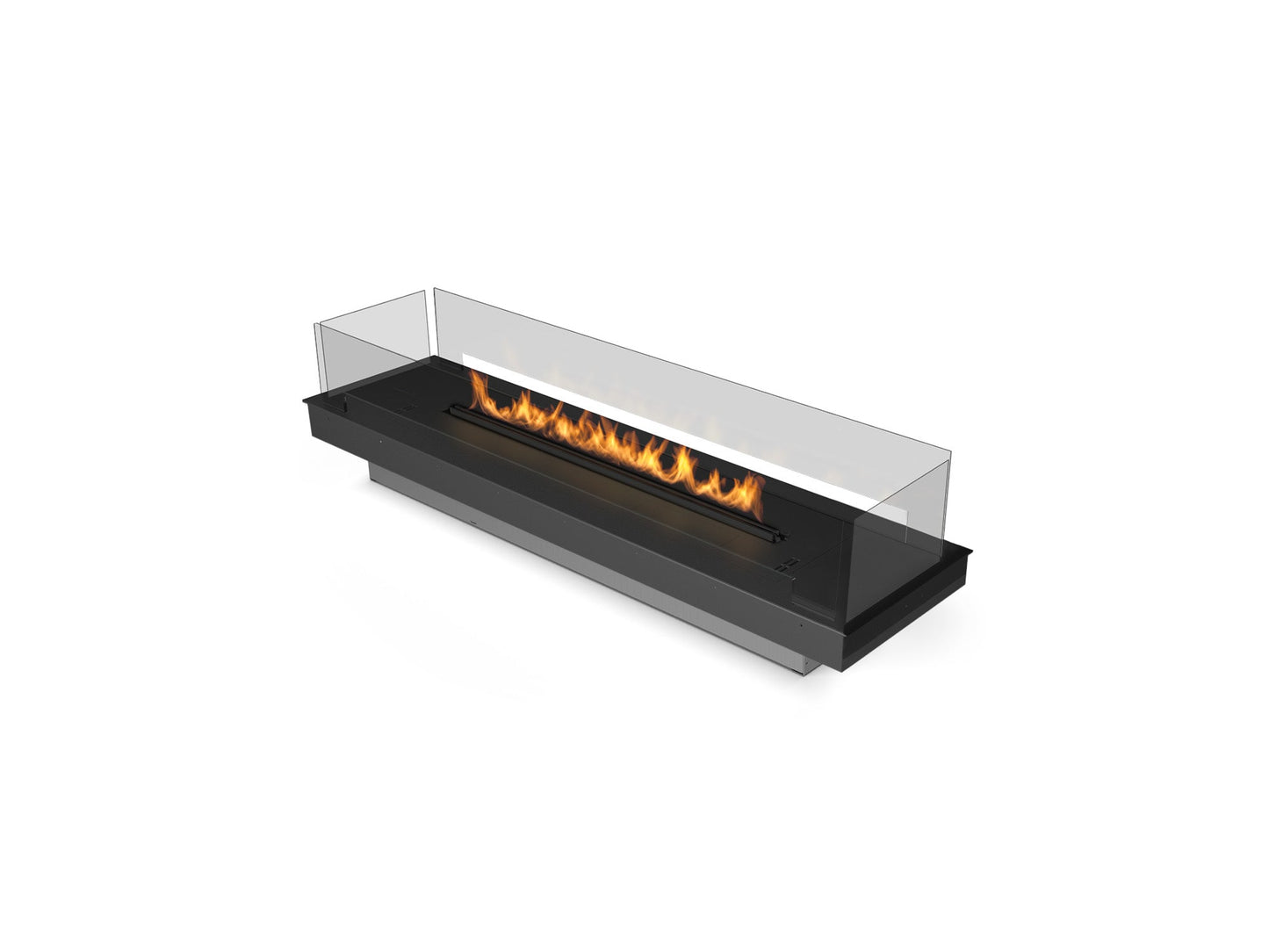

Planika Bioethanol Burner FLA 4 1190 Plus With Adaptive Frame and Glass Panels

Planika Bioethanol Burner FLA 4 1190 Plus With Adaptive Frame and Glass Panels

£10,434.00 GBP
£10,434.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.

Planika Bioethanol Burner FLA 4 1190 Plus With Adaptive Frame and Glass Panels

The Planika Bioethanol Burner FLA 4 1190 Plus With Adaptive Frame and Glass Panels is a premium bioethanol insert designed to elevate modern interiors with style and functionality.

Featuring an adaptive frame, this innovative bioethanol burner seamlessly integrates into custom fireplace designs, while the included glass panels enhance safety and aesthetics by creating a sleek barrier around the flame.

With its clean-burning bioethanol fuel, the FLA 4 1190 Plus offers a ventless solution, producing no smoke, soot, or ash. Fully automatic and compatible with smart home systems, it provides effortless control and unmatched elegance.

The FLA 4 Plus has smart home integration with a remote control or through the Planika App.

A perfect solution for custom fireplace installations that requires no connections.

The Planika FLA4 Plus bioethanoil burner is a available in multiple sizes to suit your requirement.

• remote control included
• mobile app control
• touch display
• SHS compatible
• automatic refill system
• 6 stage flame height
• BEV Technology®
• CO2 sensor

View full details

Technical information

DIMENSIONS (Widht/Height/Depth)

W: 1346 mm / 60”
D: 446 mm / 17.6”
HFLA4: 220 mm / 8.7”
HFLA4+: 305 mm / 12.0”
HGLASS: 200 mm / 7.9”

EFFICIENCY

Burn time: max. 9 hrs / 30 hrs
Capacity: 6.8 L / 21.0 L
Heat: max. 9.4 kW
Room size: min. 94 m³

Manual

Planika FLA4/FLA4+
Instruction Information

Download

Brochure

Planika FLA4/FLA4+
Safety Information

Download

Specification

Planika FLA4/FLA4+
Dimension & Sizes

Download

Features

  • remote control included
  • mobile app control
  • touch display
  • SHS compatible
  • automatic refill system
  • 6 stage flame height
  • BEV Technology®
  • CO2 sensor

LUXURY FIREPLACE IN VARIOUS SHAPES

FLA4 with BEV (Burning Ethanol Vapours) Technology is a zero-clearance fireplace that can be quickly installed in built-ins made of various materials, even flammable ones such as wood. This makes it possible to create a variety of real fire arrangements without design restrictions.

AND IN 7 DIFFERENT LENGTHS

FLA4 / 4+ 590 Burner

FLA4 / 4+ 790 Burner

FLA4 / 4+ 990 Burner

FLA4 / 4+ 1190 Burner

FLA4 / 4+ 1490 Burner

FLA4 / 4+ 1990 Burner

FLA4 / 4+ 2490 Burner

AUTOMATIC REFILLING SYSTEM

Planika was the first to introduce the automatic refilling system for bioethanol fireplaces. An automatic pump allows you to refill the fireplace quickly and effortlessly. All it takes in connecting the pump with an integrated panel and putting the other pipe to the bottle with fuel and pushing the button. Once the tank is full, the pump switches off automatically. This protects the user and the fireplace from any accidental spillage or overfilling.

INNOVATIVE TOUCH PANEL CONTROL

One of the groundbreaking features of the FLA4 fireplace is its modern touch panel control, seamlessly concealed behind a flap for an elegant finish. This intuitive interface provides users with the capability to effortlessly adjust and monitor the fireplace’s settings. With a simple touch, you can gauge the fuel status, modify the flame’s intensity, and even set an automatic shut-off timer for added peace of mind.

NET ZERO FIREPLACE

Planika bioethanol fireplaces with BEV Technology provide a net zero combustion, meaning they produce only a minimal amounts of CO2 that can be compared to what one person exhales. Bioethanol which fuels Planika automatic fireplaces is made of corn, wheat, or potatoes. These plants absorb CO2, which contributes to its continuous circulation in nature. Thanks to this, these innovative fireplaces can be used in cities that regulate or prohibit emission of fossil fuels.

The FLA4 Bioethanol Burner can be installed in a variety of different ways

Island

Single-Sided

Left/Right Coner

Three-Sided

Room Divider

Tunnel

Knowledge

Planika

SAFETY FIRST

For over 20 years, Planika has been a pioneer in bioethanol fireplaces safety. Our solutions are protecting the customers around the world. Now you can get all of them in one FLA4 fireplace.

TEMPERATURE SENSORS

Multiple temperature sensors are installed in areas where heat is generated. Their sensitivity to temperature changes reaches 0.1 degrees and they react immediately to any undesirable changes.

FUEL LEVEL SENSOR

To ensure that the combustion process runs smoothly, the fireplace has been equipped with a fuel level sensor. If the level of the liquid fuel in the main tank is too low, the FLA4 switches off automatically and sends the information to the user. You can check the amount of the fuel any time in the dedicated FLA4 NET ZERO app.

SEISMIC SENSORS

To meet the demands of our customers who live in areas of increased seismic activity, we’ve introduced a dedicated seismic sensor that will shut off the device if it detects vibrations. It will also react if the device is hit.

SPILLAGE SENSOR

Since we’re dealing with bioethanol, it’s always good to have a system of spillage detection on board. Deliberately tilted bottom of the device will ensure, that any hypothetical drop of fuel will fall right on the sensor.

ROBUST CONSTRUCTION

At Planika, we make sure that our products meet the highest quality standards and pass mechanical, chemical and temperature resistance tests. Both the top plate of the burner and the fuel tank are made of stainless steel to provide high performance.

FUEL RETRIEVAL SYSTEM

FLA4 is equipped with a system that redirects unused liquid fuel from the vapour generator and transports it back to the fuel tank when the device is not in use. The same situation occures when the fireplace detects any unusual situation and shuts down automatically.

FLA 4 & FLA 4+

OPTIONAL ACCESSORIES

SMART HOME SYSTEM MODULE

GLASS SCREENS

TRAY WITH LOGS OR STONES
