Pevex Bohemia X30 Cube - Wood Stove
Pevex Bohemia X30 Cube - Wood Stove

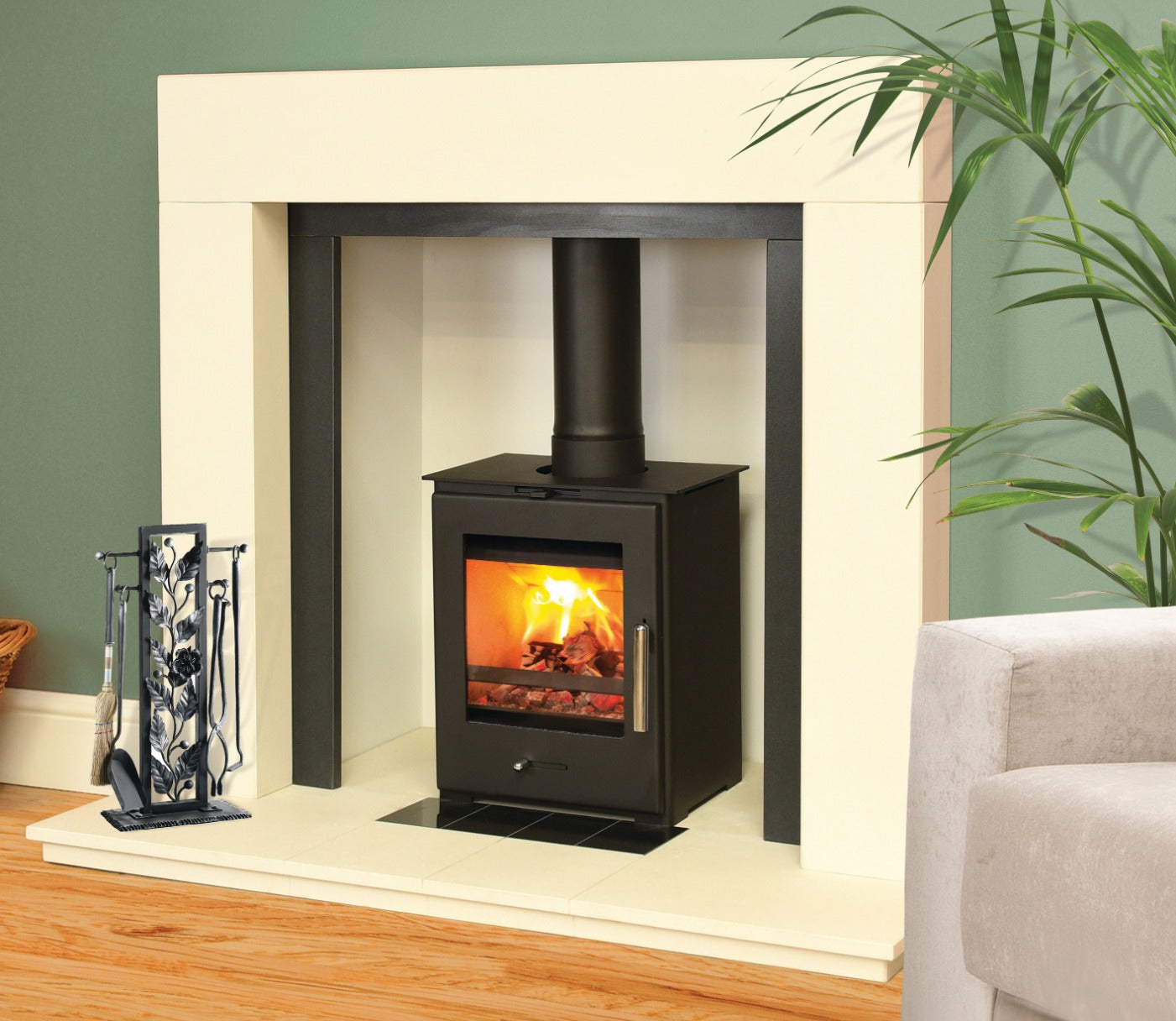

Bohemia X30
The compact 30 is suited to the smaller fireplace opening, ideal for use in smaller homes, narrow boats or summer houses, and will give a lovely radiant and convection heat.
Features
- Output range of 3-4kW
- 75% efficiency
- 300mm log length
- Convection top plate
- Cast iron grate
- Simple air sliders to control both primary and secondary air wash to keep the glass clean
- HETAS approved for solid fuel and woodburning
- Smoke Exemption Approved for use in smoke control areas
Options
- Ergonomic chrome or wooden handles
- Available with plain or decorative cast iron door
Share




Information
- Width x depth x height (mm): 390 x 290 x 521
- Weight (kg): 51 (58 with cast door)
- Log length (mm): 300
- Flue dia. (mm) outlet & position: 125 Top/rear
- Nominal output (kW): 3
- Range rating (kW): 3-4
- Distance from rear of stove to centre of top flue outlet (mm): 116
- Distance to flammable materials: From back (mm): 450
- From back with optional heat shield fitted (mm)
- From sides (mm): 400
- From front (mm): 800
- Heating area (m²): 20-80
- Efficiency (net): Wood: 74.4%
- Efficiency (net): Smokeless fuel: 75.5%
- CO% @ 13% O2: Wood: 0.15
- CO% @ 13% O2: Smokeless fuel: 0.28
- Certified: CE & EN13240
- HETAS approved: Yes
- Defra approved: Yes
