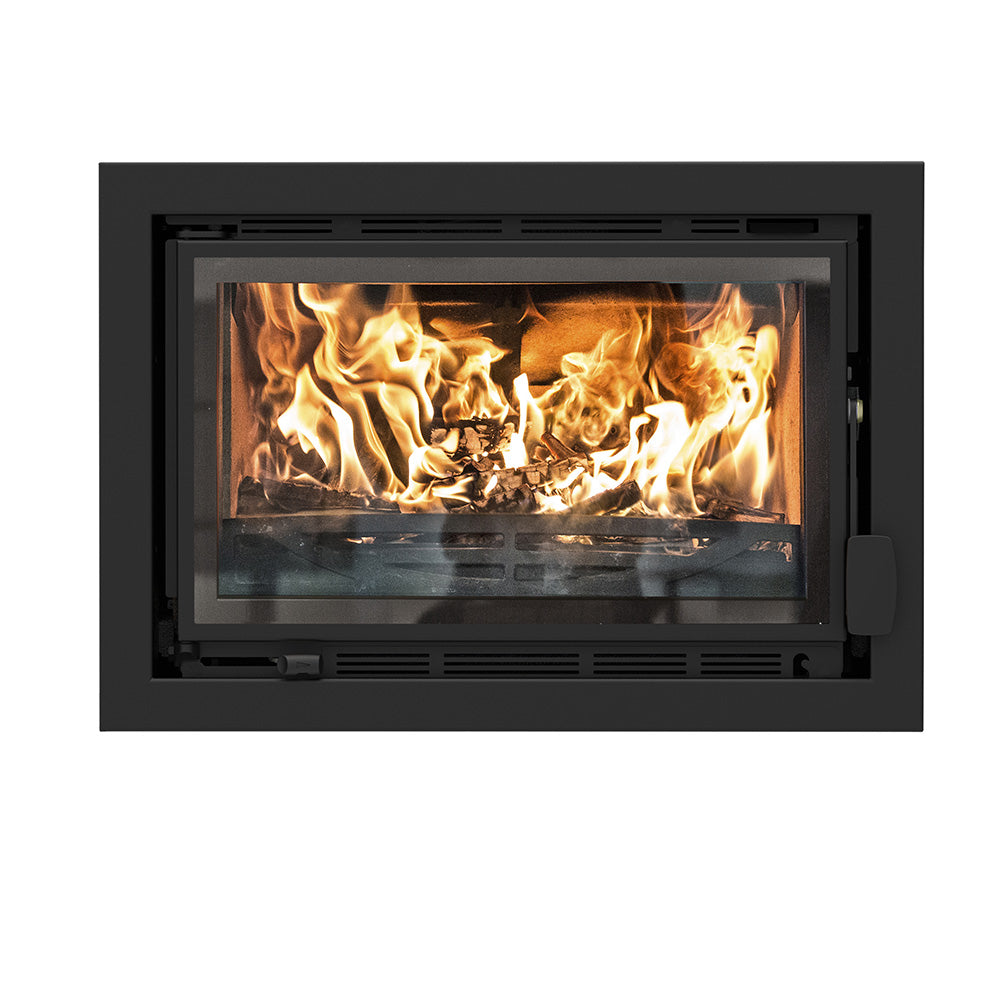

Charnwood Bay 5VL Wood Burning Stove

Charnwood Bay 5VL Wood Burning Stove

Over 200 5 Star Reviews (98%) Price Match Guarantee
£2,279.00 GBP
£2,279.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colour: Black Matt - Charnwood

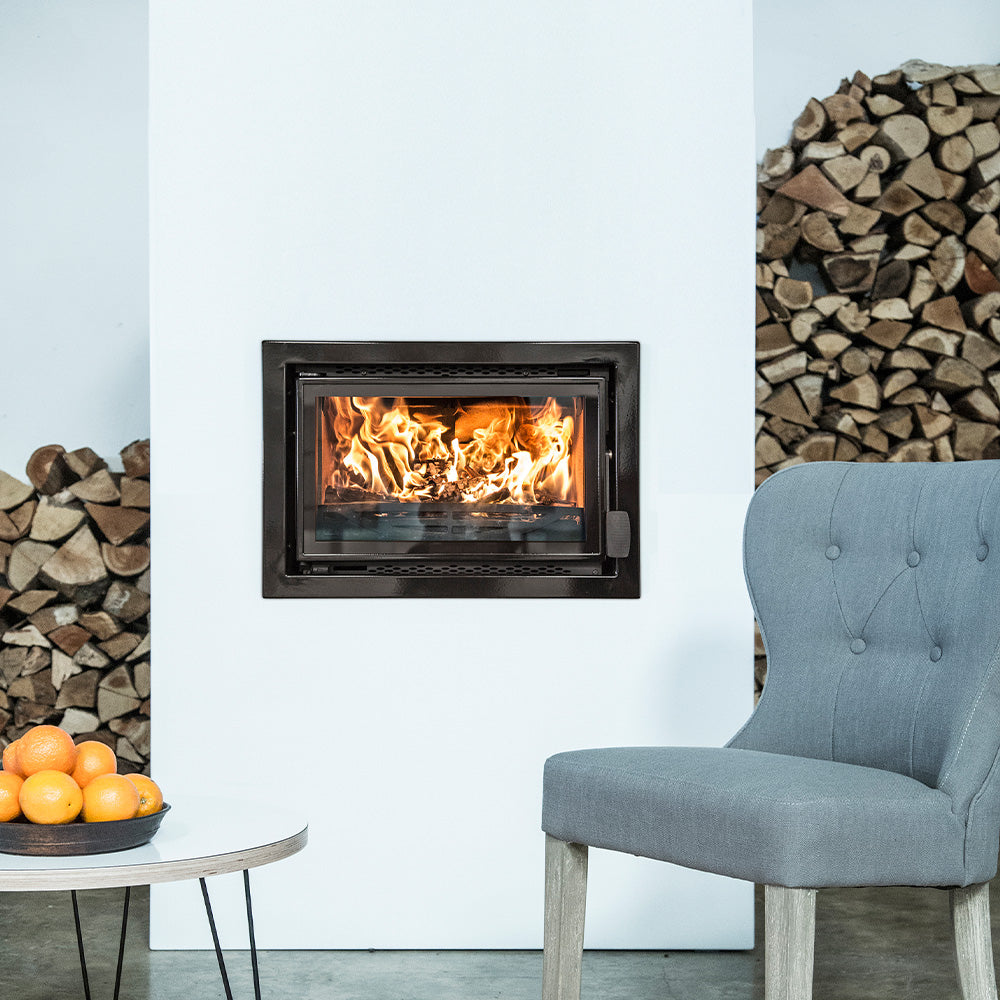

The Bay VL is a contemporary insert stove featuring a large landscape window framed with a clean, sharp edged surround. The Charnwood Bay VL meets the Clean Air Act requirements for burning wood in smoke control areas. The stove boasts a variable output of between 2 and 7kW and is available in a choice of eight colours.

View full details

Key features

Very low landscape insert

Contemporary insert stove with a large landscape window and sharp-edged surround.

5kW variable output

2-7kW range suits medium rooms and modern low-hearth installations.

Wide panoramic flame view

Large landscape window framed with a clean, sharp-edged surround.

81% efficiency

Ecodesign-ready combustion for a cleaner, more economical burn.

DEFRA exempt for smoke control areas

Can legally burn wood in smoke control areas across the UK.

British made on the Isle of Wight

Built from plate steel, cast iron, ceramic glass and VLAZE vitreous enamel.

Technical information

SIA Eco Design Ready. Cleanburn Airwash Technology. Drop down throat plate enabling the chimney to be swept through the stove. DEFRA exempt for burning wood in smoke control areas.

  • Nominal heat output: 5kW.
  • Efficiency: 81% wood.
  • Flue diameter: 150mm (6 inch).
  • Max log length: 463mm. Weight: 94.3kg.
  • Dimensions: Inset Body: 474h x 685w x 412d mm.
  • Materials: Plate steel, Cast iron, Ceramic glass, VLAZE vitreous enamel surround.
  • Colours: Black Matt, Pewter, Almond, Blue, Bronze, Brown, Green, Gun Metal. Options: Choice of eight colours.

Charnwood Bay Colour Options

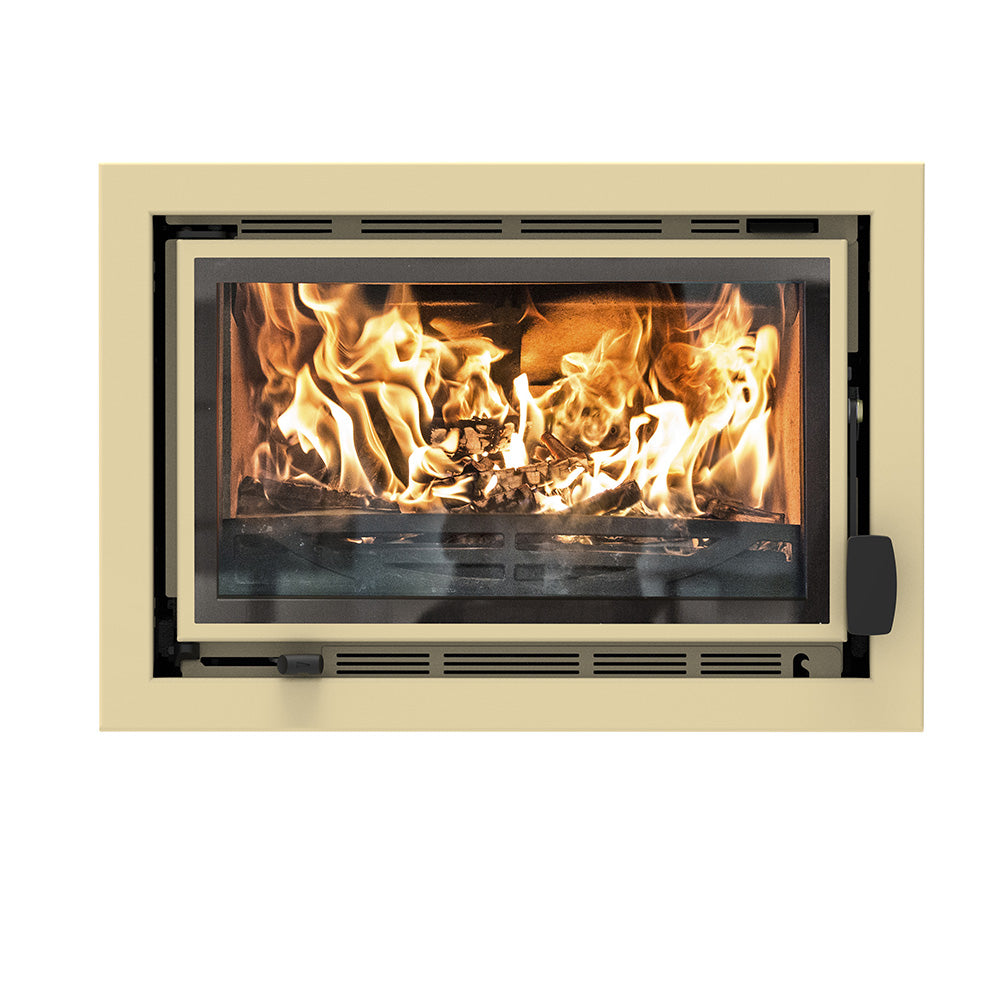

Almond
Black

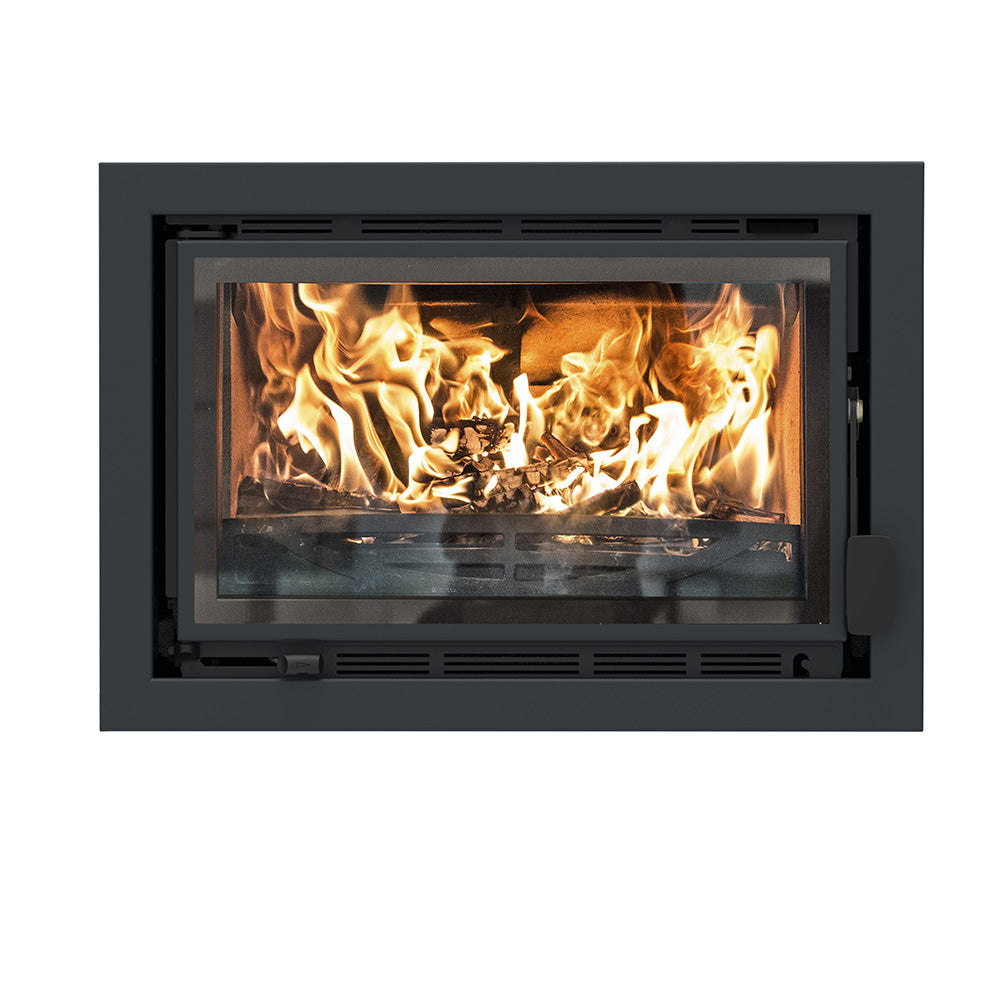

Blue

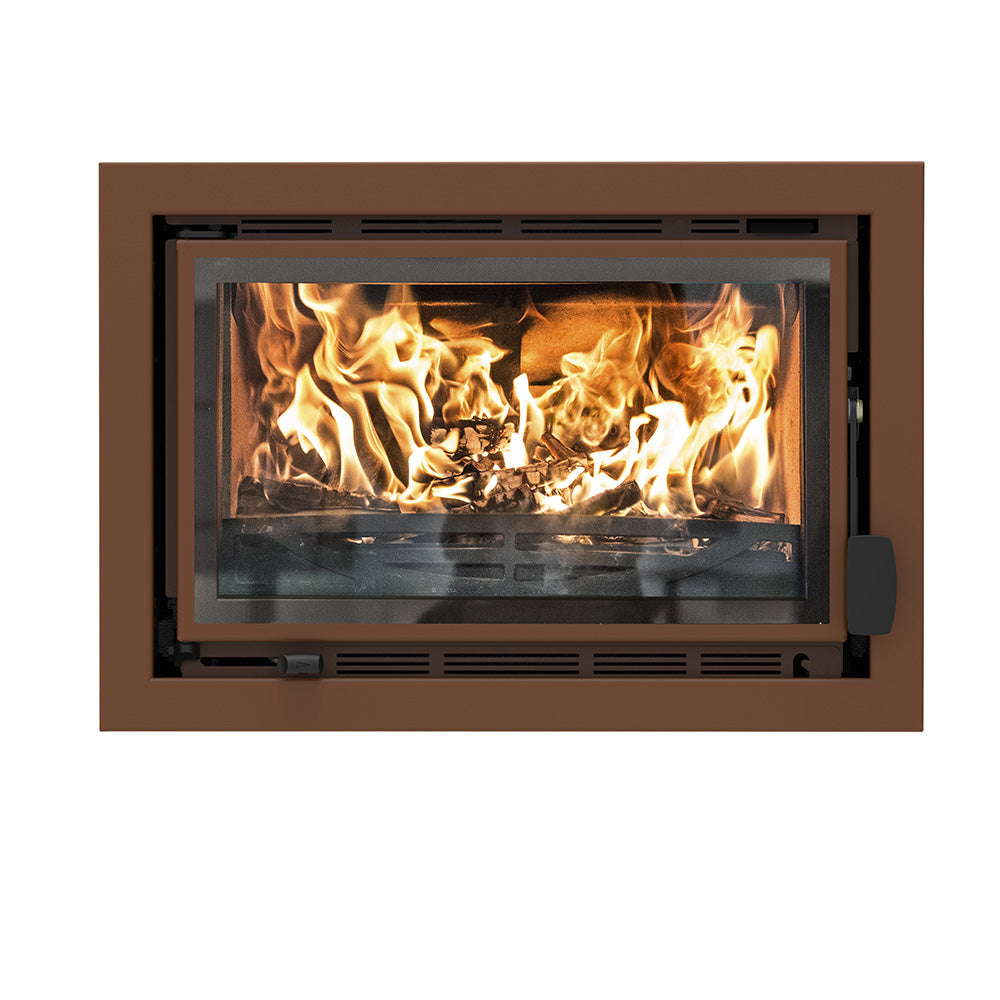

Bronze
Brown
Green
Gun Metal

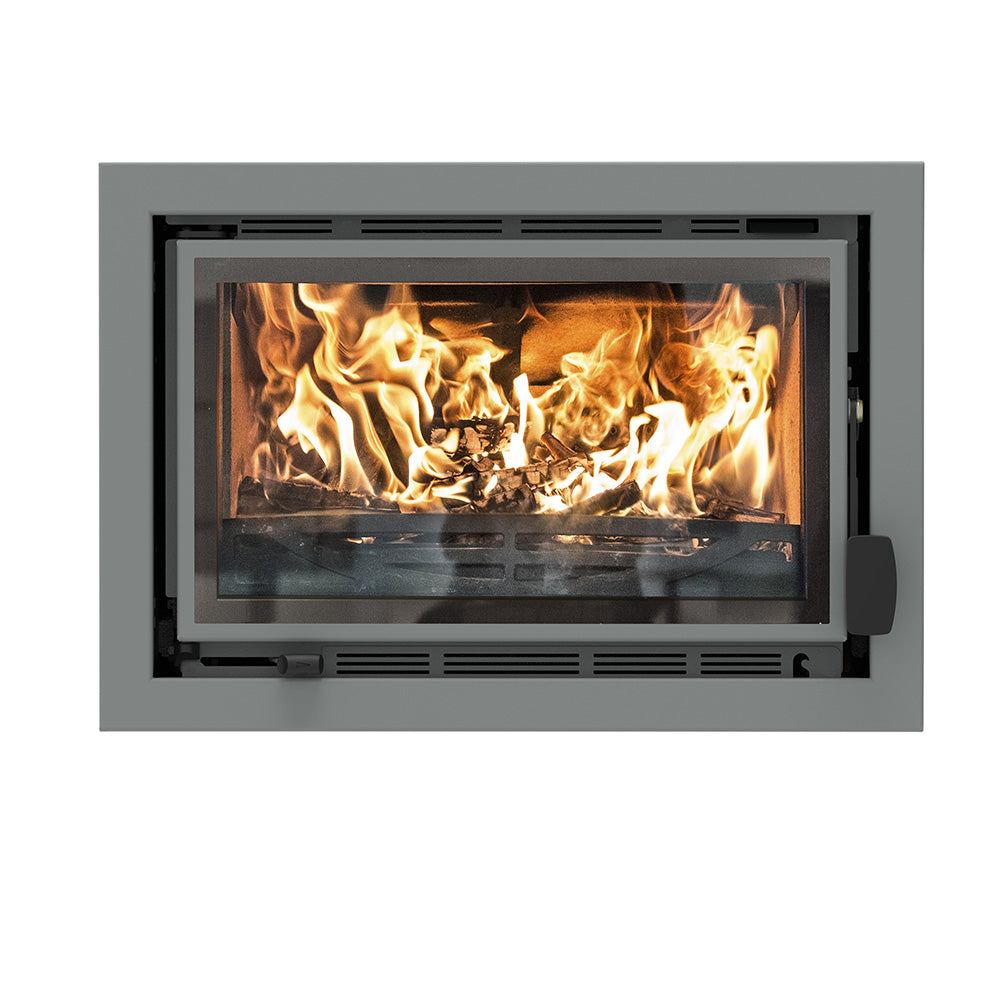

Pewter

Manual

Charnwood Wood Stoves
Instruction Information

Brochure

Charnwood Wood Stoves
Marketing Brochure

Specification

Charnwood Wood Stoves
Dimension & Sizes

ECOFIRES & STOVES

Call Us for Assistance with Your Charnwood Bay Wood Burning Stoves

Need help choosing which Charnwood Wood Burning Stove? Our team can guide you through outputs, installation and colour options. Phone 01252 815100.

01252 815100

Knowledge

Q & A Charnwood

What models are in this range?

Bay 5BX, Bay 5VL.

What heat outputs are available?

Both are 5kW; the BX is freestanding, the VL is a very low insert.

What fuel can these stoves burn?

Wood / Smokeless Fuel.

Are these stoves Ecodesign-ready?

Yes. They are SIA Ecodesign Ready and meet strict efficiency and emissions standards.

Can I install these stoves in a smoke control area?

Yes. They are DEFRA exempt for burning wood logs in smoke control areas.

What colours are available?

Black, Gunmetal, Bronze, Blue, Brown, Green, Parchment.

What rooms are these stoves best for?

Residential living rooms, Modern low-hearth installations, Wide fireplace openings.

Where are Charnwood stoves made?

Designed and built on the Isle of Wight, UK

What installation notes should I be aware of?

Minimum chimney height 4m

What technology is shared across the range?

Single air control.
