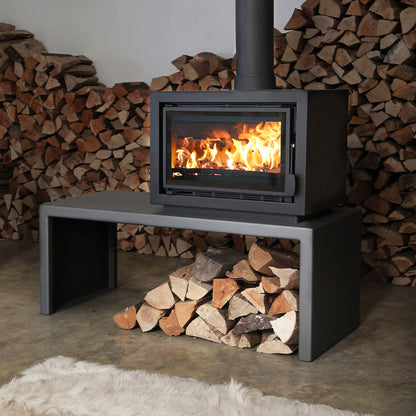

Charnwood Bay 5BX Wood Burning Stove

Charnwood Bay 5BX Wood Burning Stove

Over 200 5 Star Reviews (98%) Price Match Guarantee
£3,679.00 GBP
£3,679.00 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Colour: Black Matt - Charnwood
Stand: Freestanding

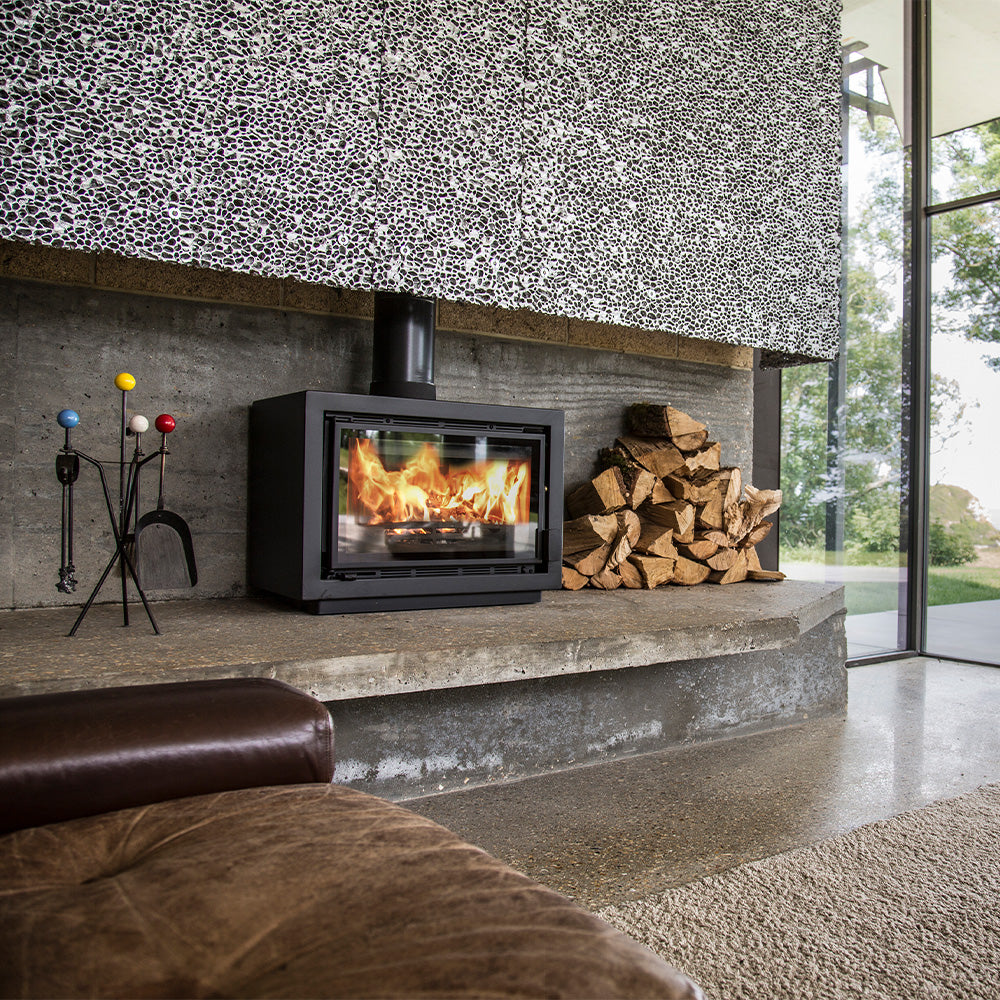

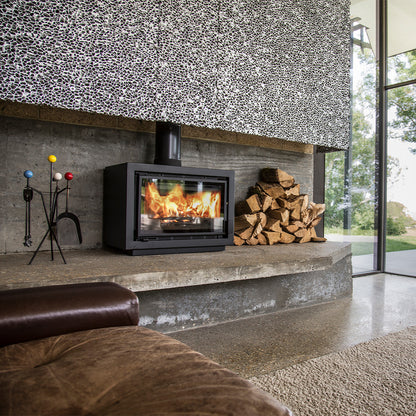

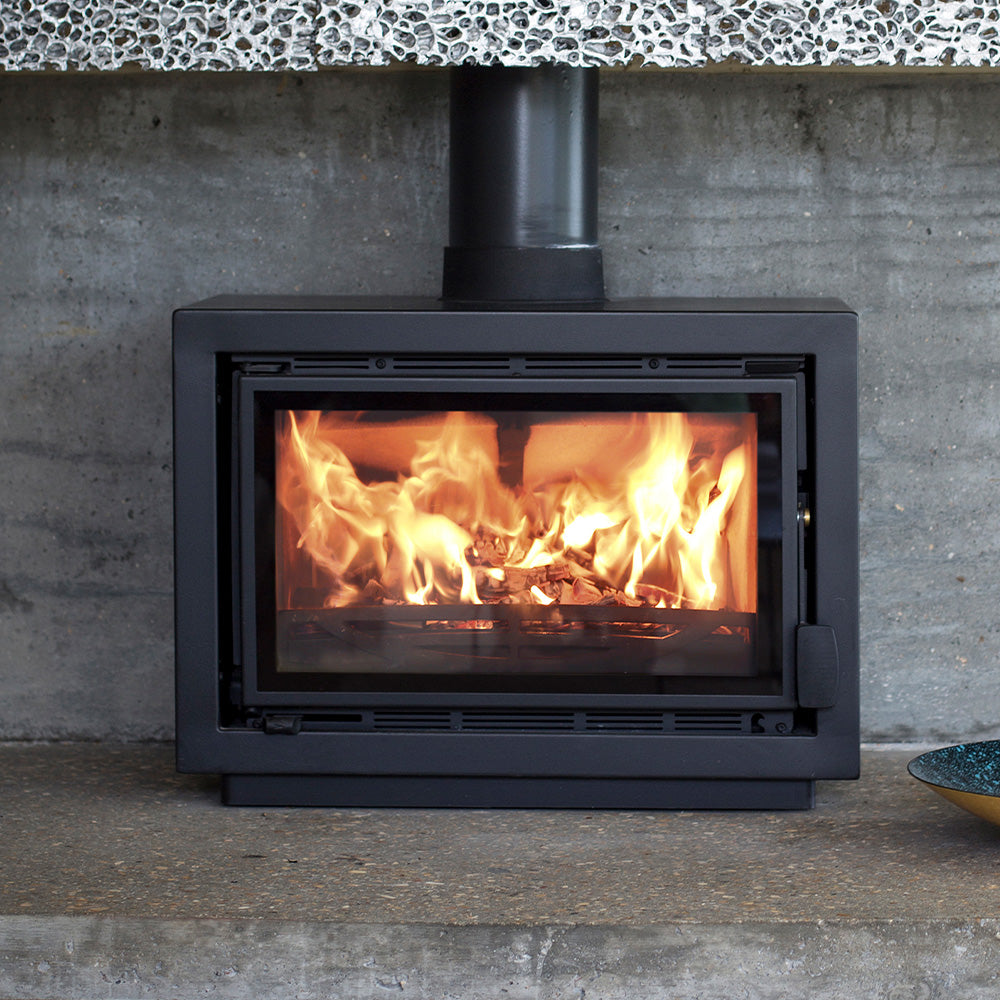

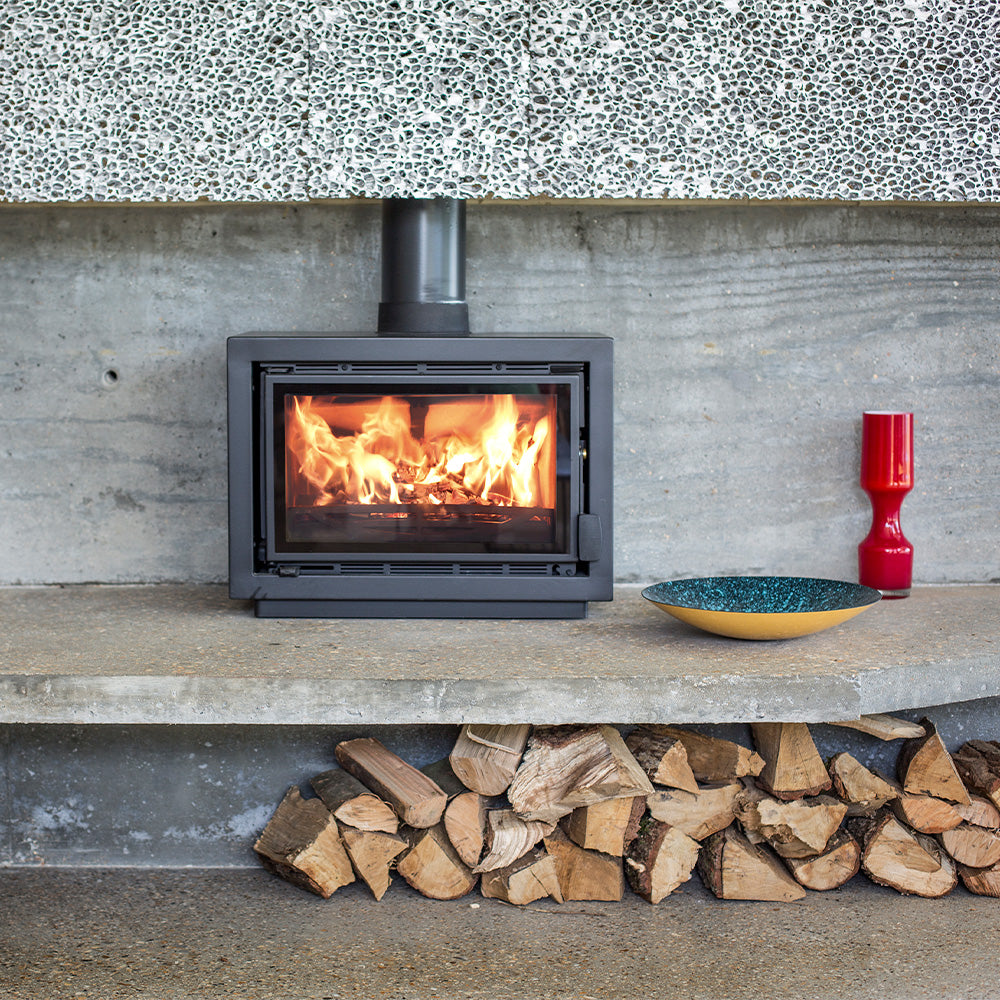

The Bay BX is the latest addition to the Bay range. The firebox and frame of the stove is the same as the Bay VL but features an outer casing transforming the appliance into a freestanding stove. The Bay BX can be installed directly onto a hearth or we offer a choice of three base options to raise the stove up: bench stand, centre stand or store stand. Both the stove and base options are available in eight colours.

View full details

Key features

5kW freestanding stove

Same firebox as the Bay VL in a freestanding casing with a wide flame view.

Three base options

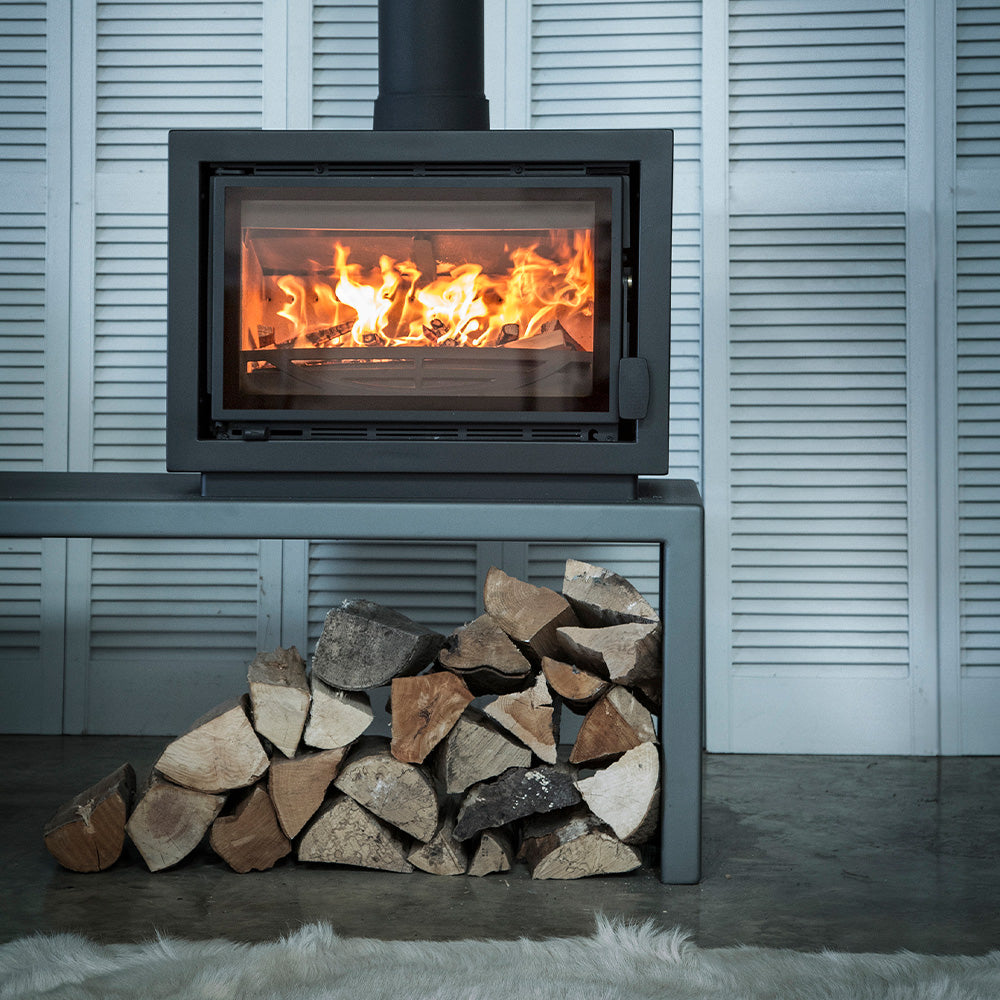

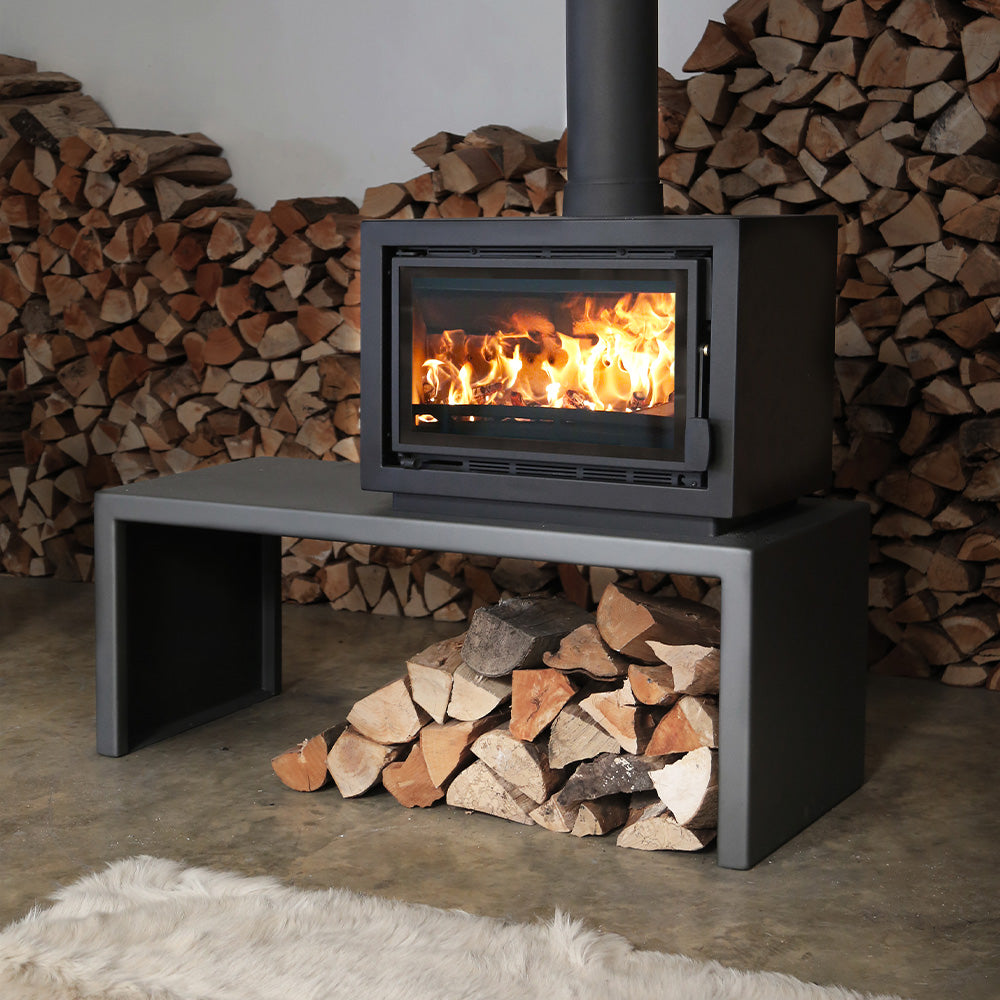

Choose bench stand, centre stand or store stand to raise the stove on a hearth.

Wide panoramic flame view

Large landscape window turns the fire into a striking room feature.

81% efficiency

Ecodesign-ready combustion that keeps emissions low and fuel use down

DEFRA exempt for smoke control areas

Install across the UK and burn wood logs in smoke control areas.

British made on the Isle of Wight

Built from plate steel, cast iron and ceramic glass by Charnwood.

Technical information

SIA Eco Design Ready. Cleanburn Airwash Technology. Drop down throat plate enabling the chimney to be swept through the stove. DEFRA exempt for burning wood in smoke control areas.

  • Nominal heat output: 5kW.
  • Efficiency: 81% wood.
  • Flue diameter: 150mm (6 inch).
  • Max log length: 463mm. Weight: 103kg.
  • Dimensions: Bench Stand: 1000h x 1300w x 500d mm; Store Stand: 1000h x 688w x 500d mm; Centre Stand: 910h x 688w x 403d mm; Freestanding: 500h x 688w x 403d mm.
  • Materials: Plate steel, Cast iron, Ceramic glass.
  • Colours: Black Matt, Pewter, Almond, Blue, Bronze, Brown, Green, Gun Metal. Options: Choice of eight colours, Bench stand, Centre stand, Store stand.

Charnwood Bay Colour Options

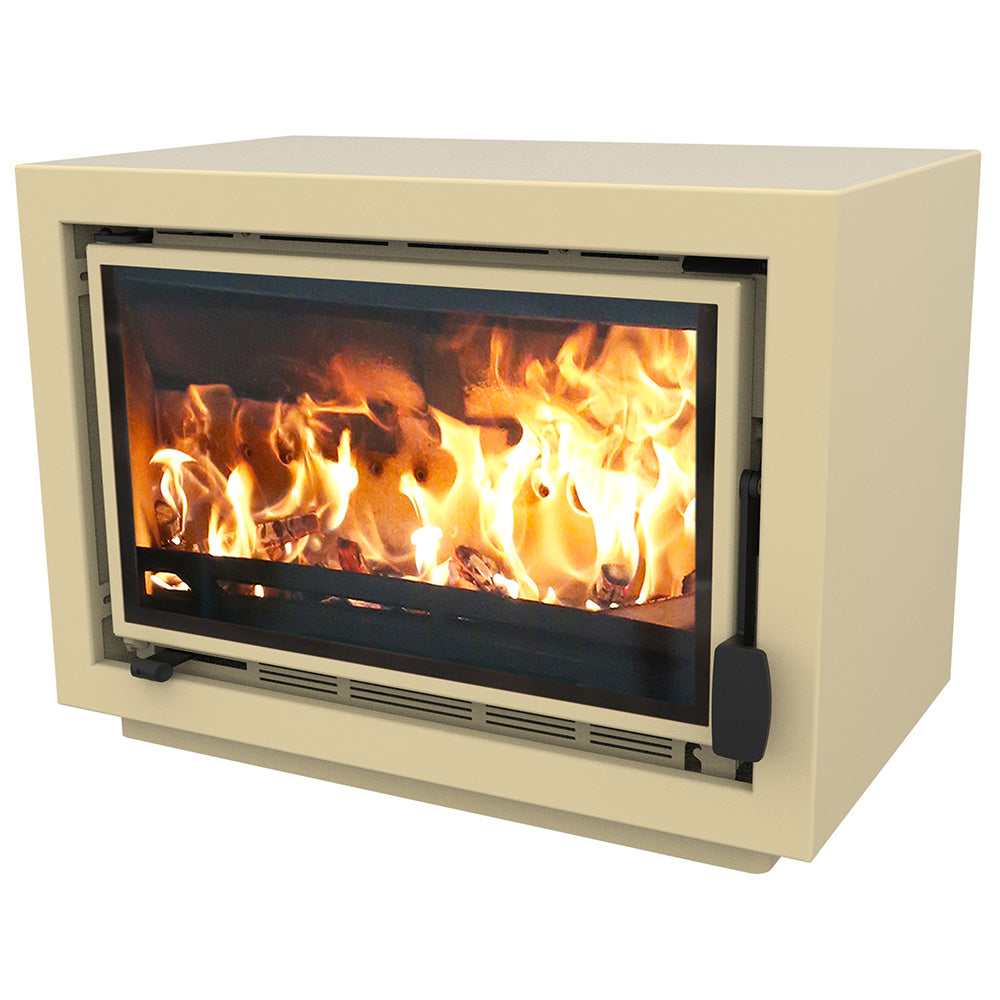

Almond
Black
Blue

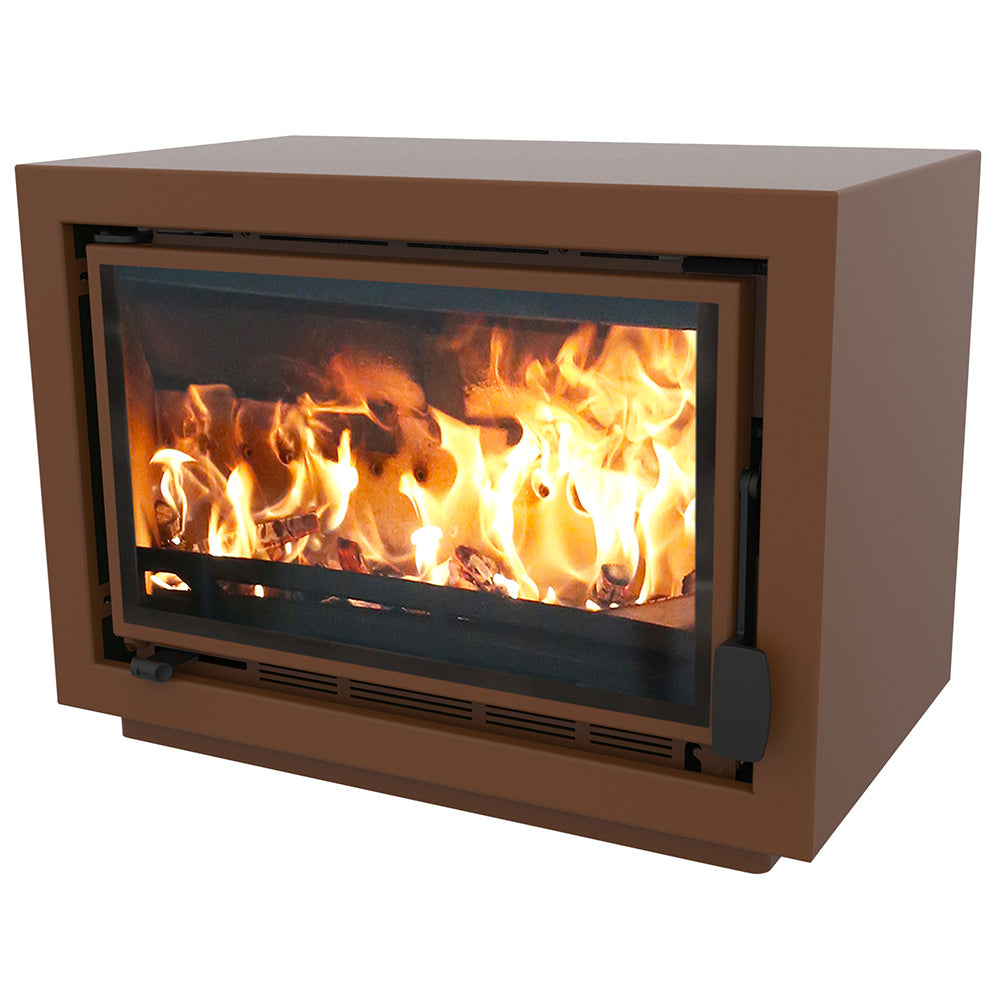

Bronze
Brown

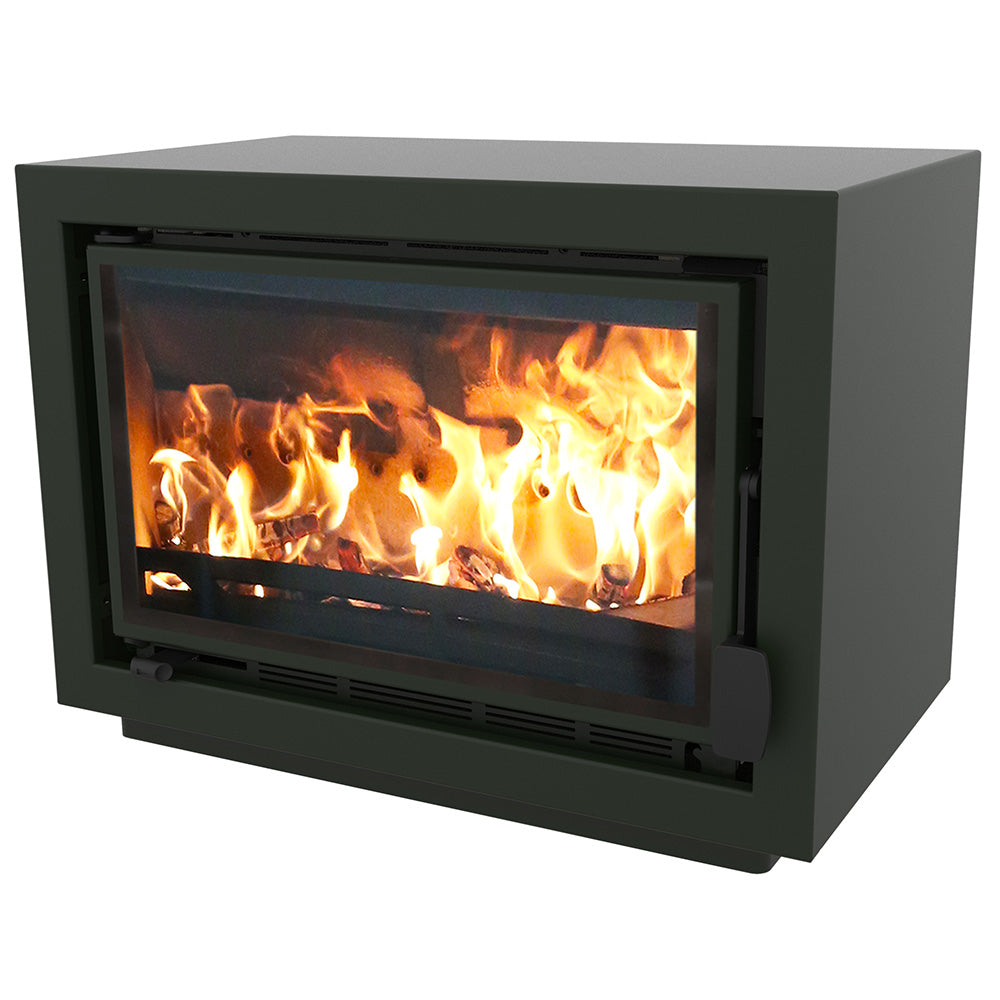

Green

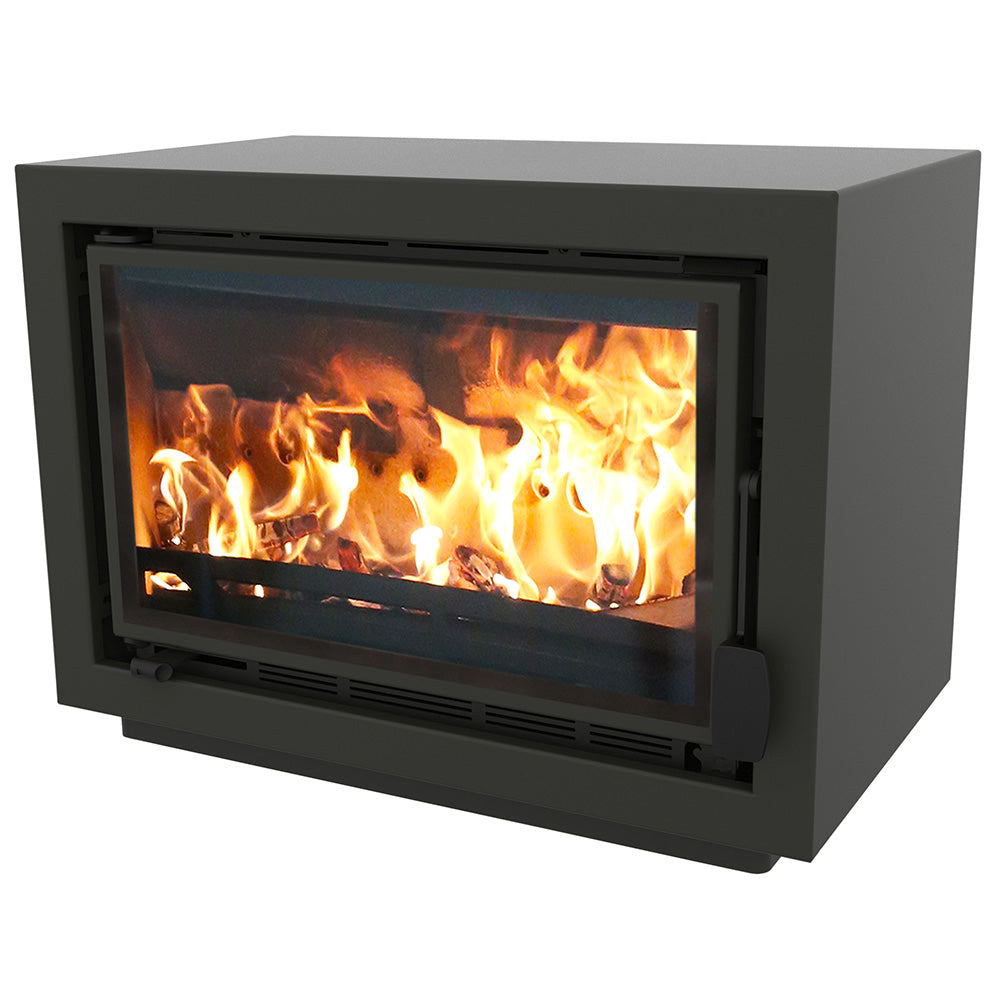

Gun Metal

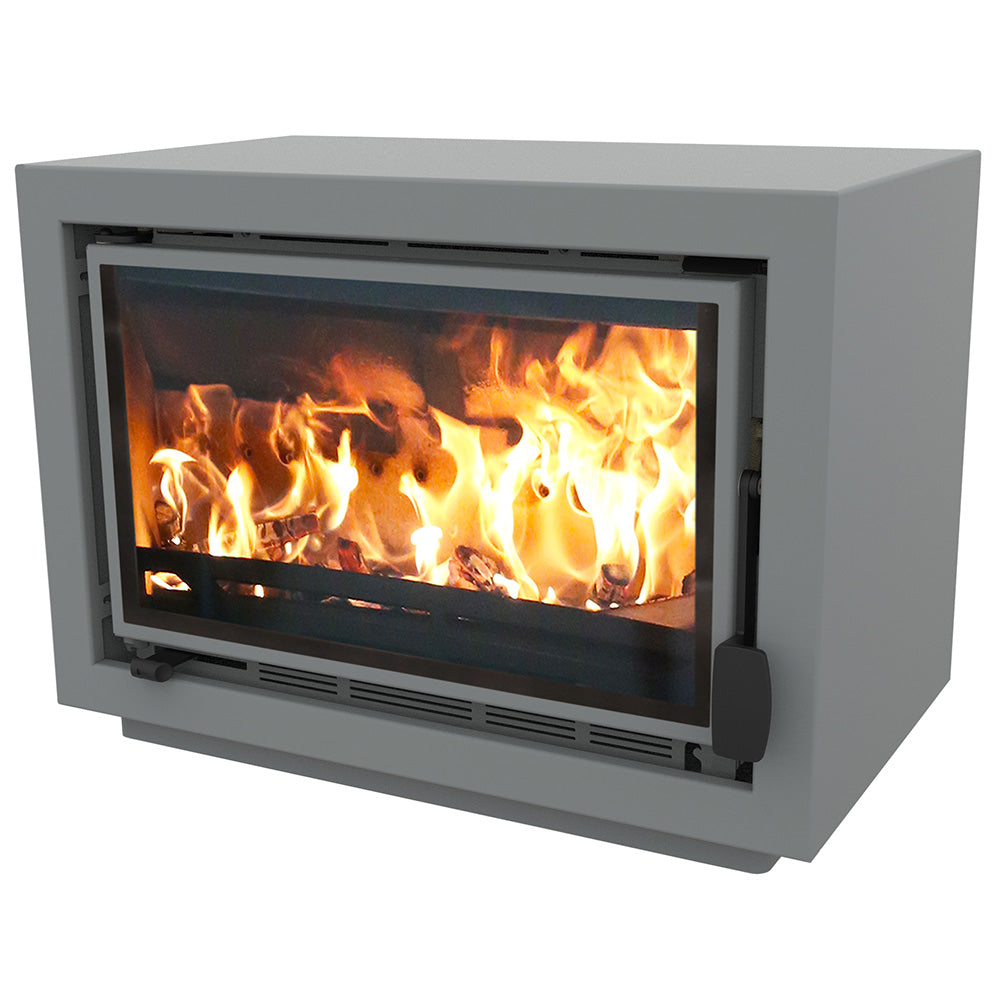

Pewter

Manual

Charnwood Wood Stoves
Instruction Information

Brochure

Charnwood Wood Stoves
Marketing Brochure

Specification

Charnwood Wood Stoves
Dimension & Sizes

ECOFIRES & STOVES

Call Us for Assistance with Your Charnwood Bay Wood Burning Stoves

Need help choosing which Charnwood Wood Burning Stove? Our team can guide you through outputs, installation and colour options. Phone 01252 815100.

01252 815100

Knowledge

Q & A Charnwood

What models are in this range?

Bay 5BX, Bay 5VL.

What heat outputs are available?

Both are 5kW; the BX is freestanding, the VL is a very low insert.

What fuel can these stoves burn?

Wood / Smokeless Fuel.

Are these stoves Ecodesign-ready?

Yes. They are SIA Ecodesign Ready and meet strict efficiency and emissions standards.

Can I install these stoves in a smoke control area?

Yes. They are DEFRA exempt for burning wood logs in smoke control areas.

What colours are available?

Black, Gunmetal, Bronze, Blue, Brown, Green, Parchment.

What rooms are these stoves best for?

Residential living rooms, Modern low-hearth installations, Wide fireplace openings.

Where are Charnwood stoves made?

Designed and built on the Isle of Wight, UK

What installation notes should I be aware of?

Minimum chimney height 4m

What technology is shared across the range?

Single air control.
